MCT-35 H1 | CRAWLER TRACTOR | TRAKTOR CRAWLER | MATSUMOTO

Rp 117.000.000

Description

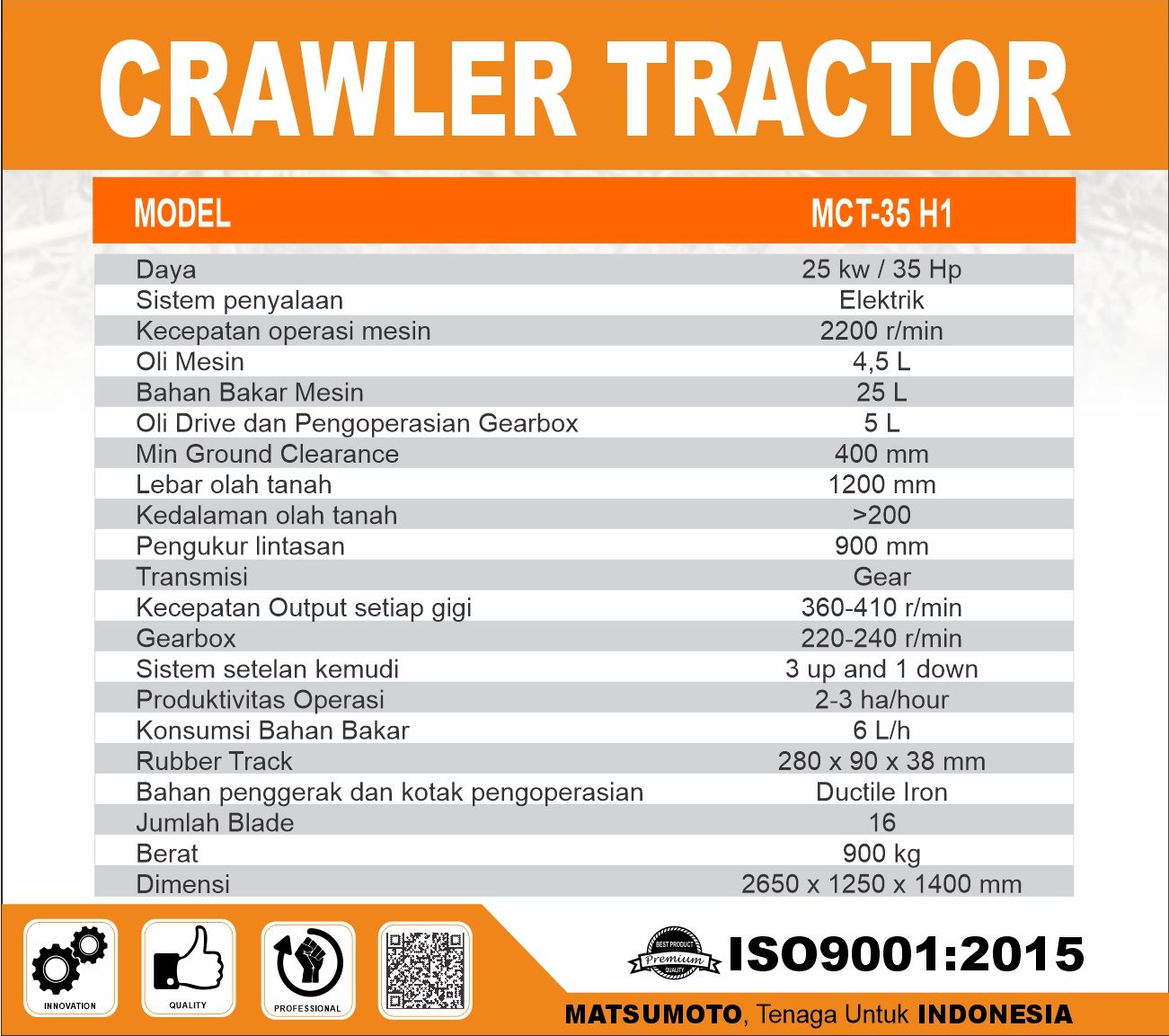

SPESIFIKASI :

Model MCT-35 H1
Daya 25 kw / 35 hp
Sistem Penyalaan Elektrik
Kecepatan Operasi Mesin 2200 r/min
Oli Mesin 4,5 L
Bahan Bakar Mesin 25 L
Oli Drive dan Pengoperasian Gearbox 5 L
Min Ground Clearance 400 mm
Lebar Olah Tanah 1200 mm
Kedalaman Olah Tanah >200
Pengukur Lintasan 900 mm
Transmisi Gear
Kecepatan Output Setiap Gigi 360-410 r/min
Gearbox 220-240 r/min
Sistem Setelan Kemudi 3 up and 1 down
Produktivitas Produksi 2-3 ha/hour
Konsumsi Bahan Bakar 6 L/h
Rubber Track 280 x 90 x 38 mm
Bahan Penggerak dan Kotak Pengoperasian Ductile iron
Jumlah Blade 16
Berat 900 kg
Dimensi 2650 x 1250 x 1400 mm

Additional information

Weight 900 kg
Dimensions 265 × 125 × 140 cm
