| Content | SPESIFIKASI :
| Model |

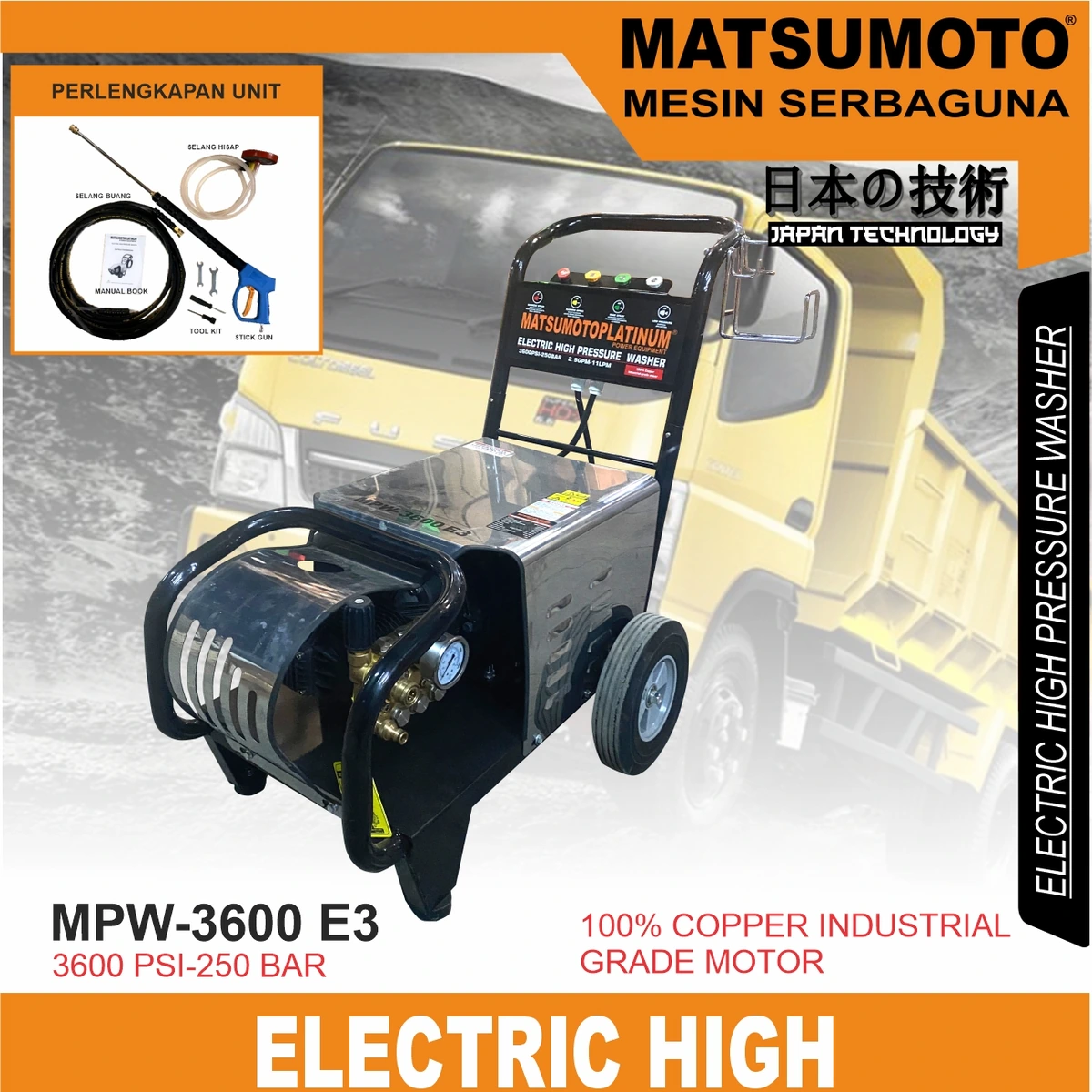

MPW-3600 E3 |
| Power |
5.5 kw |
| Rated Pressure |
3600 psi |
| Permissible Pressure |
3800 psi |
| Rated Flow |
10 Lpm |
| Max Flow |
11 Lpm |
| Voltage |
Three Phase 380 V / 50 Hz |
| Rated Speed |
1450 rpm |
| Allowable Temperature |
0-60℃ |
| Water Proof Level |
lp5 |
| Dimension Packing |
89 x 50 x 45 cm |
| G.W |
84 kg |
| SPESIFIKASI :
| Model |
MDP-40 |
| Daya |
10 Hp |
| Daya Maksimum |
6.6 kw / 3600 rpm |
| Diameter x Langkah |
86 x 72 mm |
| Kecepatan Rata-rata |
3000 Rpm |
| Kapasitas Bahan Bakar |
5.5 L |
| Kapasitas Oli Mesin |
1.65 L |
| Sistem Penyalaan |
Manual |
| Diameter Hisap / Keluar Arus |
100 / 4" mm |
| Tinggi Hisap |
6 m |
| Daya Dorong |
32 m³ |
| Kapasitas |
80 m/h |
| Berat Bersih |
69 kg |
| Dimensi |
650 x 510 x 560 mm |
| SPESIFIKASI :
| Model |
MBC-43 |
| Model Mesin |
2 Tak, Pendinginan Udara |
| Daya Maksimum |
1.2 kw / 6500 r/min |
| Silinder |
42.7 cc |
| Gasoline / 2 -Cycle Oil Mixing Rasio |
21:1 |
| Kecepatan Rata-rata |
2800-3200 r/min |
| Kapasitas Bahan Bakar |
1.12 Liter |
| Diameter As |
26 mm |
| Berat |
17 kg |
| Dimensi Unit |
2730 x 380 x 460 mm |
| SPESIFIKASI :
| Model |
MSE-222 G |
| Type Sprayer |
MS-22 |
| Sprayer |
| RPM |
800 - 1000 |
| Suction (L/min) |
16.5 - 20.5 |
| Power (Hp) |
2 - 3 |
| Pressure (Mpa) |
1.5 - 3.5 |
| Sprayer |
| RPM |
1200 - 1400 |
| Suction (L/min) |
28 - 40 |
| Power (Hp) |
5 - 6 |
| Pressure (Mpa) |
1.1 - 1.5 |
| Berat (kg) |
35 |
| Dimensi (mm) |
840 x 390 x 420 |
| SPESIFIKASI :
| Model |
MGG-3990 ET |
| Model Mesin |
OHV, Single Silinder, 4-Tak, Dengan Pendingin Udara |
| Sistem Pengapian |
T.C.I |
| Kapasitas Silinder |
208 cc |
| Kapasitas Oli |
0.6 L |
| Daya Rata-rata |
2.8 kw |
| Daya Maksimum |
3 kw |
| Tegangan / Frekuensi |
220 v / 50 Hz |
| Kapasitas Bahan Bakar |
15 L |
| Sistem Penyalaan |
Recoil & Starter |
| Berat Bersih |
54 kg |
| Dimensi Unit |
620 x 460 x 530 mm |
| SPESIFIKASI :
| Model |
MDX-186 FA / FAE |
| Model Mesin |
OHV, 4-Tak, Silinder Tunggal Dengan Pendingin Udara Diesel |
| Diameter x Langkah |
86 x 72 mm |
| Kapasitas Silinder |
418 cc |
| Daya Maksimum |
10 Hp |
| Kecepatan Rata-rata |
3600 rpm |
| Kapasitas Bahan Bakar |
5.5 L |
| Kapasitas Oli Mesin |
1.65 L |
| Sistem Penyalaan |
Recoil Starter / Electric Starter |
| Berat Bersih |
38 kg |
| Dimensi |
450 x 360 x 450 mm |
|
| Additional information |
| Weight |
84 kg |
| Dimensions |
89 × 50 × 45 cm |
|
| Weight |
69 kg |
| Dimensions |
65 × 51 × 56 cm |
|
| Weight |
17 kg |
| Dimensions |
273 × 38 × 46 cm |
|
| Weight |
35 kg |
| Dimensions |
84 × 39 × 42 cm |
|
| Weight |
54 kg |
| Dimensions |
62 × 46 × 53 cm |
|
| Weight |
38 kg |
| Dimensions |
45 × 36 × 45 cm |
| Pilihan |
MDX-186 FA, MDX-186 FAE
|
|
