| Content | SPESIFIKASI :
| KECEPETAN |
MODEL |

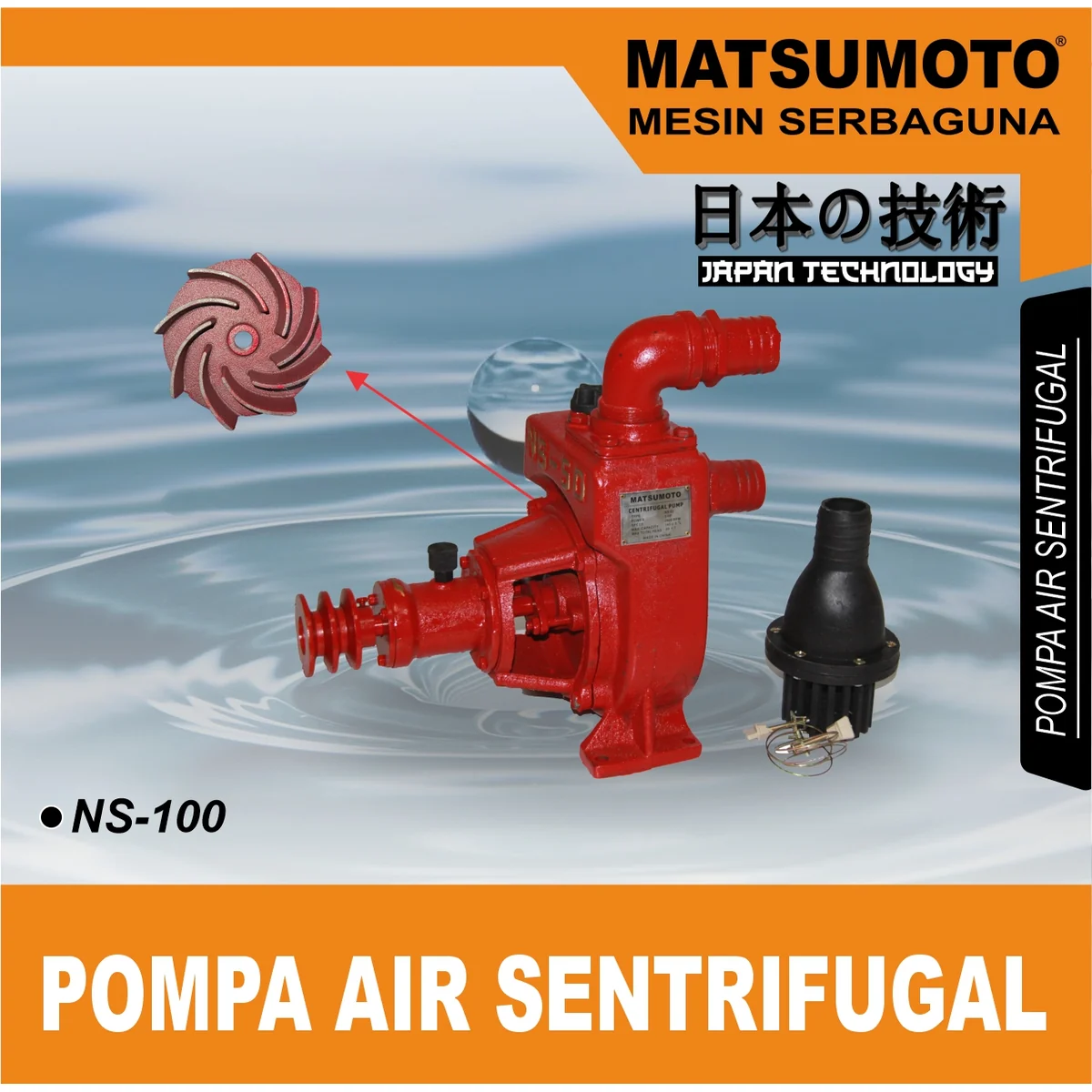

NS-100 |
| 1450 (R/min) |
| Bore (mm/inch) |
100/4 |
| Max Flow (m/h) |
86 |
| Total Head (m) |
16 |
| Daya (kw/hp) |
4 / 6 |
| KECEPETAN |
MODEL |
NS-100 |
| 2200 (R/min) |
| Bore (mm/inch) |
100/4 |
| Max Flow (m/h) |
115 |
| Total Head (m) |
32 |
| Daya (kw/hp) |
7.5 / 10 |
| KECEPETAN |
MODEL |
NS-100 |
| 2600 (R/min) |
| Bore (mm/inch) |
100/4 |
| Max Flow (m/h) |
130 |
| Total Head (m) |
38 |
| Daya (kw/hp) |
11 / 16 |
| Disarankan Untuk Angkat (m) |
5 - 6 |
| Berat Bersih (kg) |
61 |
| SPESIFIKASI :
| Model |
MDP-30 CI |
| Daya |
7 Hp |
| Daya Maksimum |
4.0 kw / 3600 rpm |
| Diameter x Langkah |
78 x 62 mm |
| Kecepatan Rata-rata |
3000 Rpm |
| Kapasitas Bahan Bakar |
3.5 L |
| Kapasitas Oli Mesin |
1.1 L |
| Sistem Penyalaan |
Recoil |
| Diameter Hisap / Keluar Arus |
80 / 3" mm |
| Tinggi Hisap |
6 m |
| Daya Dorong |
75 mm |
| Kapasitas |
48 m³/h |
| Berat Bersih |
52 kg |
| Dimensi |
650 x 510 x 560 mm |
| SPESIFIKASI :
| Model |
MGG-8990 ET |
| Model Mesin |
OHV, Single Silinder, 4-Tak, Dengan Pendingin Udara |
| Sistem Pengapian |
T.C.I |
| Kapasitas Silinder |
420 cc |
| Kapasitas Oli |
1.1 L |
| Daya Rata-rata |
6.5 w |
| Daya Maksimum |
6.7 w |
| Tegangan / Frekuensi |
220 v / 50 Hz |
| Kapasitas Bahan Bakar |
25 L |
| Sistem Penyalaan |
Recoil & Starter |
| Berat |
87 / 91 kg |
| Dimensi |
720 x 555 x 615 mm |
| SPESIFIKASI :
| Model |
MED-520 |
| Model Mesin |
2-Tak, Silinder Bensin Dengan Pendingin Udara |
| Daya Maksimum (kw / r/min) |
1.25 kw / 6500 rpm |
| Kapasitas Silinder (cc) |
51.7 |
| Type Karburator |
Diaphragm |
| Diameter Mata Bor (mm) |
100 / 150 / 200 / 250 / 300 |
| Model Pengemudi |
Gear Transmission |
| Tingkat Pengemudi |
30:1 |
| Berat (kg) |
13 kg |
| Dimensi (mm) |
320 x 410 x 310 mm |
| SPESIFIKASI :
| Model |
MSE-230 G |
| Type Sprayer |
MS-30 |
| Sprayer |
| RPM |
80 - 1000 |
| Suction (L/min) |
40 - 45 |
| Power (Hp) |
2 - 3 |
| Pressure (Mpa) |
1.5 - 3.5 |
| Sprayer |
| RPM |
1200 - 1400 |
| Suction (L/min) |
40 - 50 |
| Power (Hp) |
10 |
| Pressure (Mpa) |
1.0 - 1.5 |
| Berat (kg) |
37 |
| Dimensi (mm) |
850 x 400 x 430 |
| SPESIFIKASI :
| Model |
MGG-7990 ET |
| Model Mesin |
OHV, Single Silinder, 4-Tak, Dengan Pendingin Udara |
| Sistem Pengapian |
T.C.I |
| Kapasitas Silinder |
420 cc |
| Kapasitas Oli |
1.1 L |
| Daya Rata-rata |
5.5 kw |
| Daya Maksimum |
5.7 kw |
| Tegangan / Frekuensi |
220 v / 50 Hz |
| Kapasitas Bahan Bakar |
25 L |
| Sistem Penyalaan |
Recoil & Starter |
| Berat Bersih |
84 / 89 kg |
| Dimensi Dus |
720 x 555 x 615 mm |
|
| Additional information |
| Weight |
61 kg |
| Pilihan |
MATSUMOTO Packing / Mechanical Seal, TIGBRO Packing / Mechanical Seal
|
|
| Weight |
52 kg |
| Dimensions |
65 × 51 × 56 cm |
|
| Weight |
87 kg |
| Dimensions |
72 × 55.5 × 61.5 cm |
|
| Weight |
13 kg |
| Dimensions |
32 × 41 × 31 cm |
|
| Weight |
37 kg |
| Dimensions |
85 × 40 × 43 cm |
|
| Weight |
84 kg |
| Dimensions |
72 × 55.5 × 61.5 cm |
|
