| Content | SPESIFIKASI :
| Type |

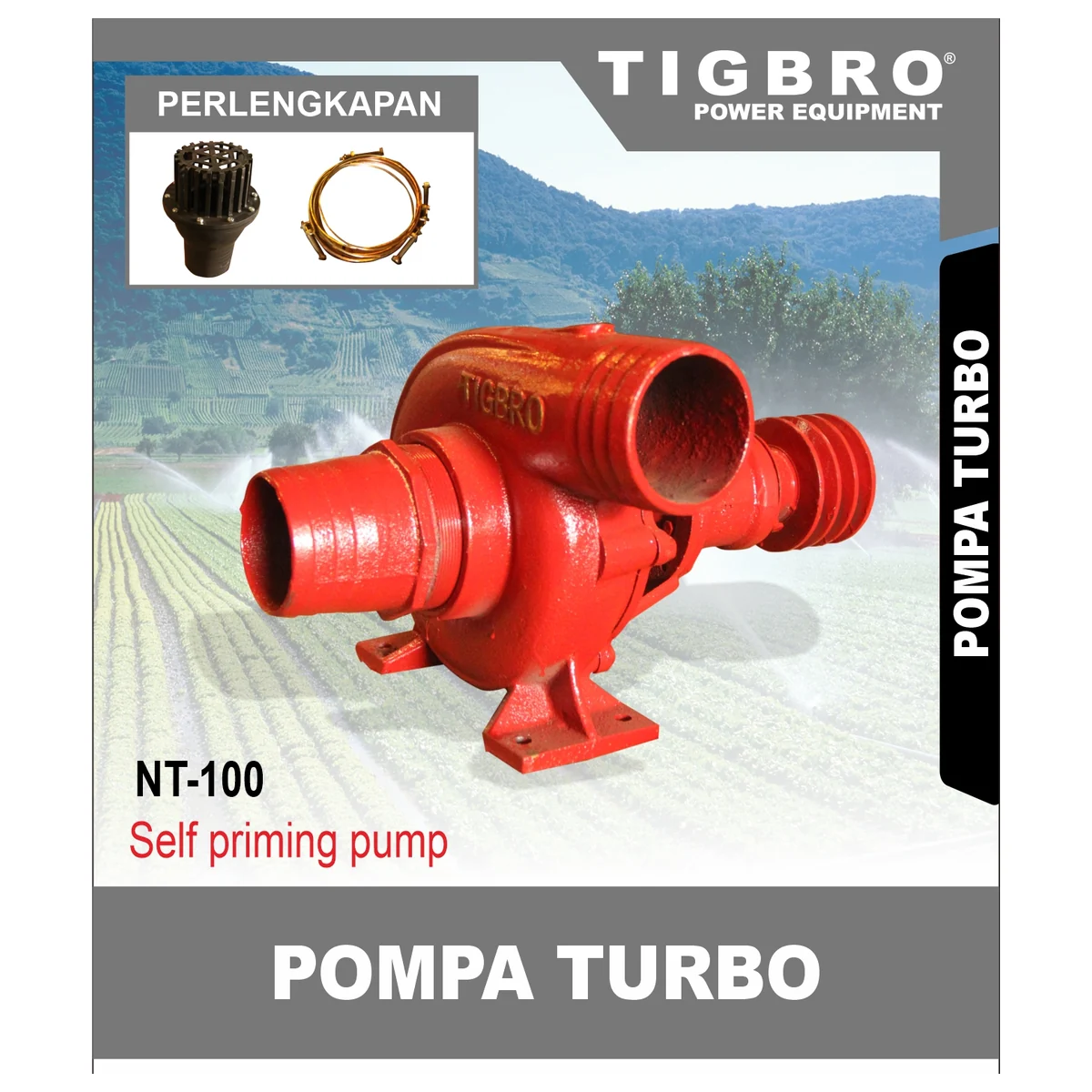

NT-100 |
| Daya |
20 Hp |
| Kecepatan |
3000 Rpm |
| Kapasitas Max |
200 mᵌ/H |
| Max Tinggi Permukaan |
32 m |
| Berat |
24 kg |
| Dimensi Unit |
50 x 30 x 28 cm |
| SPESIFIKASI :
| Type |
SNB-50 |
| Outlet Size (mm) |
50 |
| Inlet Size (mm) |
50 |
| Max. Output (Hp) |
5.5 |
| Speed (rpm) |
3600 |
| Displacement Q.Max (mᵌ/h) |
30 |
| Lift H.Max (m) |
30 |
| Suction (m) |
7 |
| Standard Engine Model |
168 F |
| SPESIFIKASI :
| Type |
SU-80 |
| Outlet Size (mm) |
80 |
| Inlet Size (mm) |
80 |
| Max. Output (Hp) |
6.5 |
| Speed (rpm) |
3600 |
| Displacement Q.Max (mᵌ/h) |
58 |
| Lift H.Max (m) |
30 |
| Suction (m) |
7 |
| Standard Engine Model |
168 F |
| SPESIFIKASI :
| Type |
KT-100 |
| Daya |
6 Hp |
| Kecepatan |
2200 r/min |
| Kapasitas |
80 mᵌ/H |
| Daya Dorong |
18 m |
| Berat |
28 kg |
| Dimensi Unit |
43.5 x 29 x 40 cm |
| SPESIFIKASI :
| Type |
SNB-100 |
| Outlet Size (mm) |
100 |
| Inlet Size (mm) |
100 |
| Max. Output (Hp) |
13 |
| Speed (rpm) |
3600 |
| Displacement Q.Max (mᵌ/h) |
80 |
| Lift H.Max (m) |
25 |
| Suction (m) |
7 |
| Standard Engine Model |
188 |
| SPESIFIKASI :
| Type |
SU-50 |
| Outlet Size (mm) |
50 |
| Inlet Size (mm) |
50 |
| Max. Output (Hp) |
5.5 |
| Speed (rpm) |
3600 |
| Displacement Q.Max (mᵌ/h) |
30 |
| Lift H.Max (m) |
30 |
| Suction (m) |
7 |
| Standard Engine Model |
168 F |
|
