In Stock

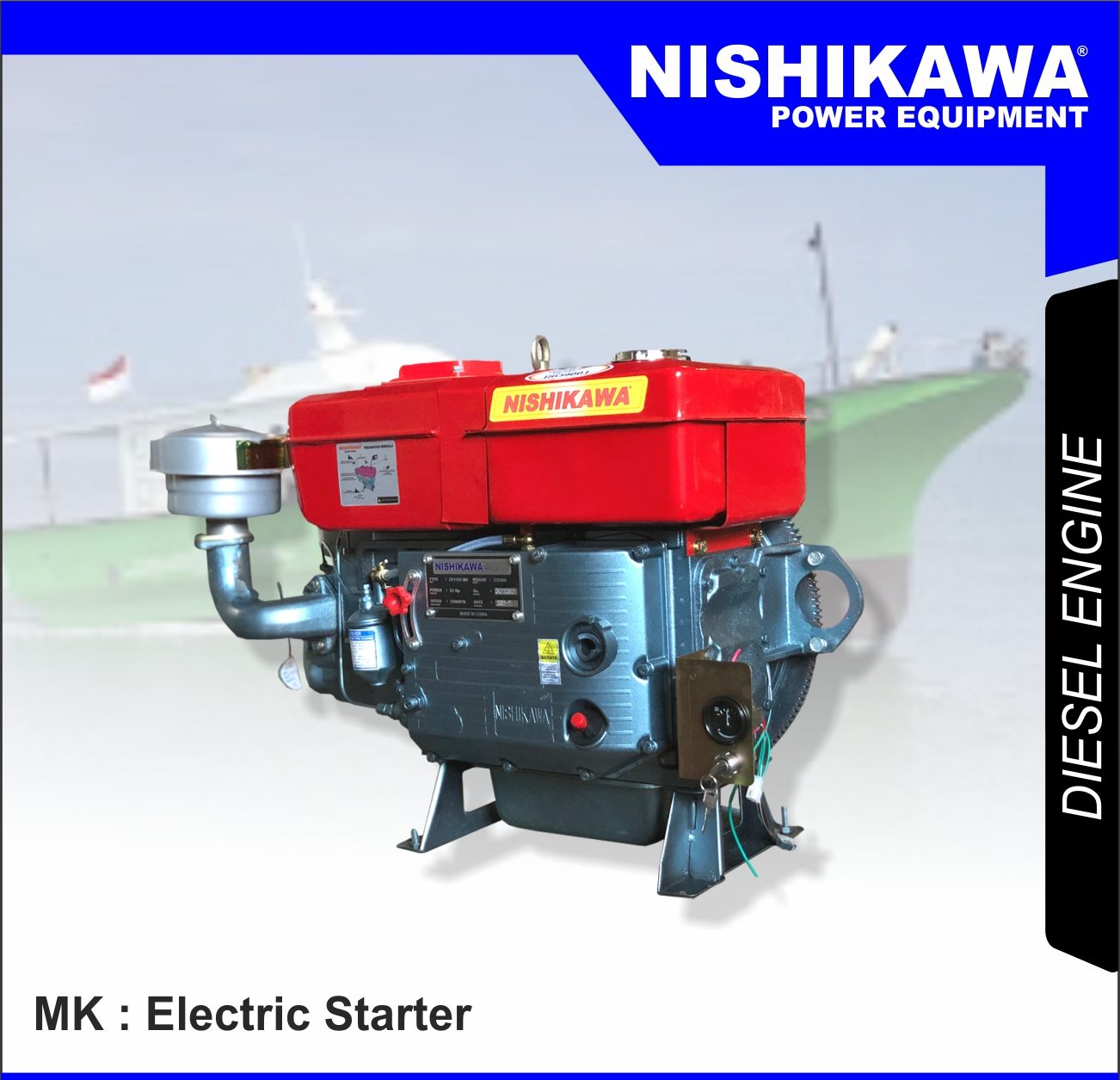

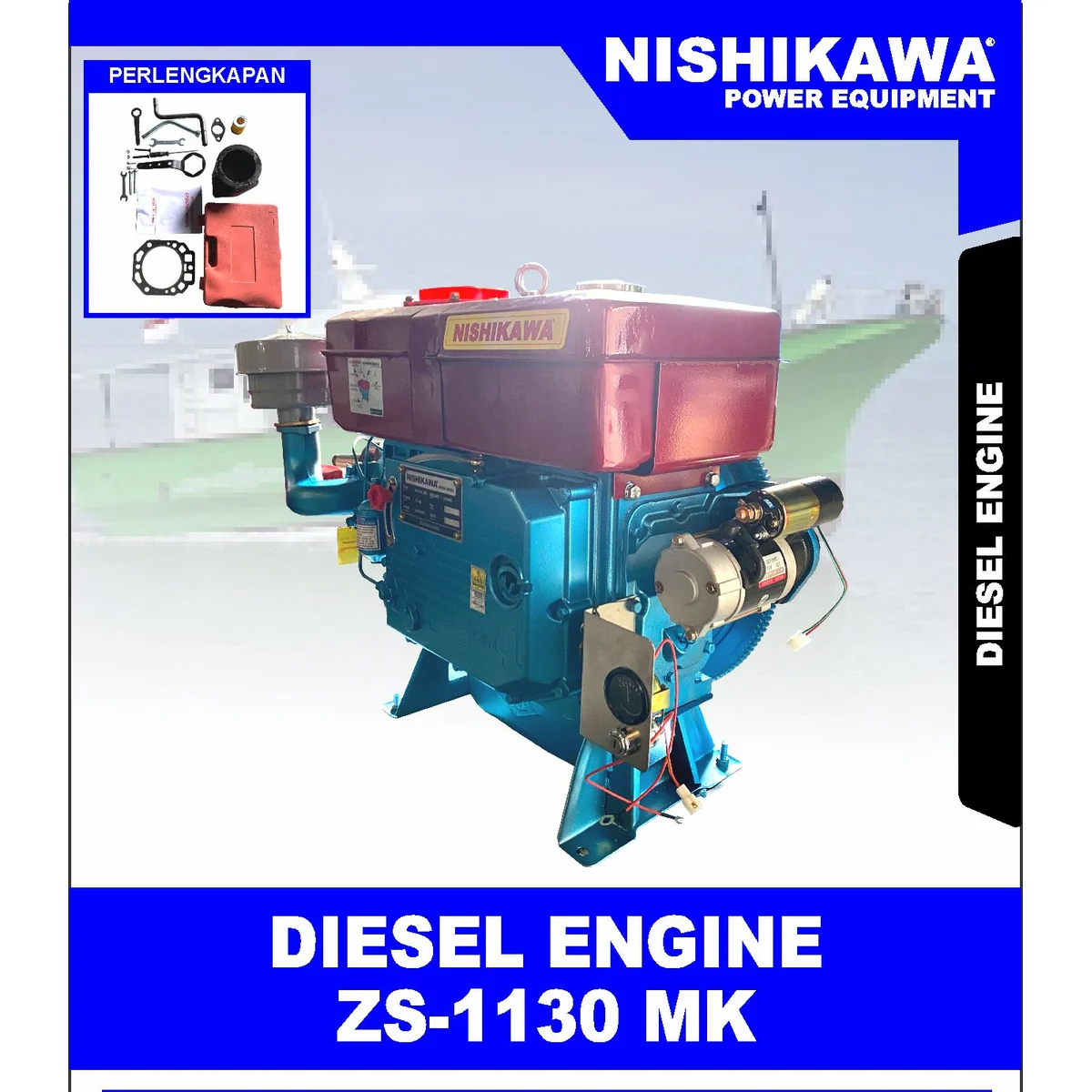

ZS-1130 MK | DIESEL GENERATOR | MESIN DIESEL | NISHIKAWA

Rp 19.200.000

10 in stock

SKU: ZS-1130 MK Categories: ,

Description

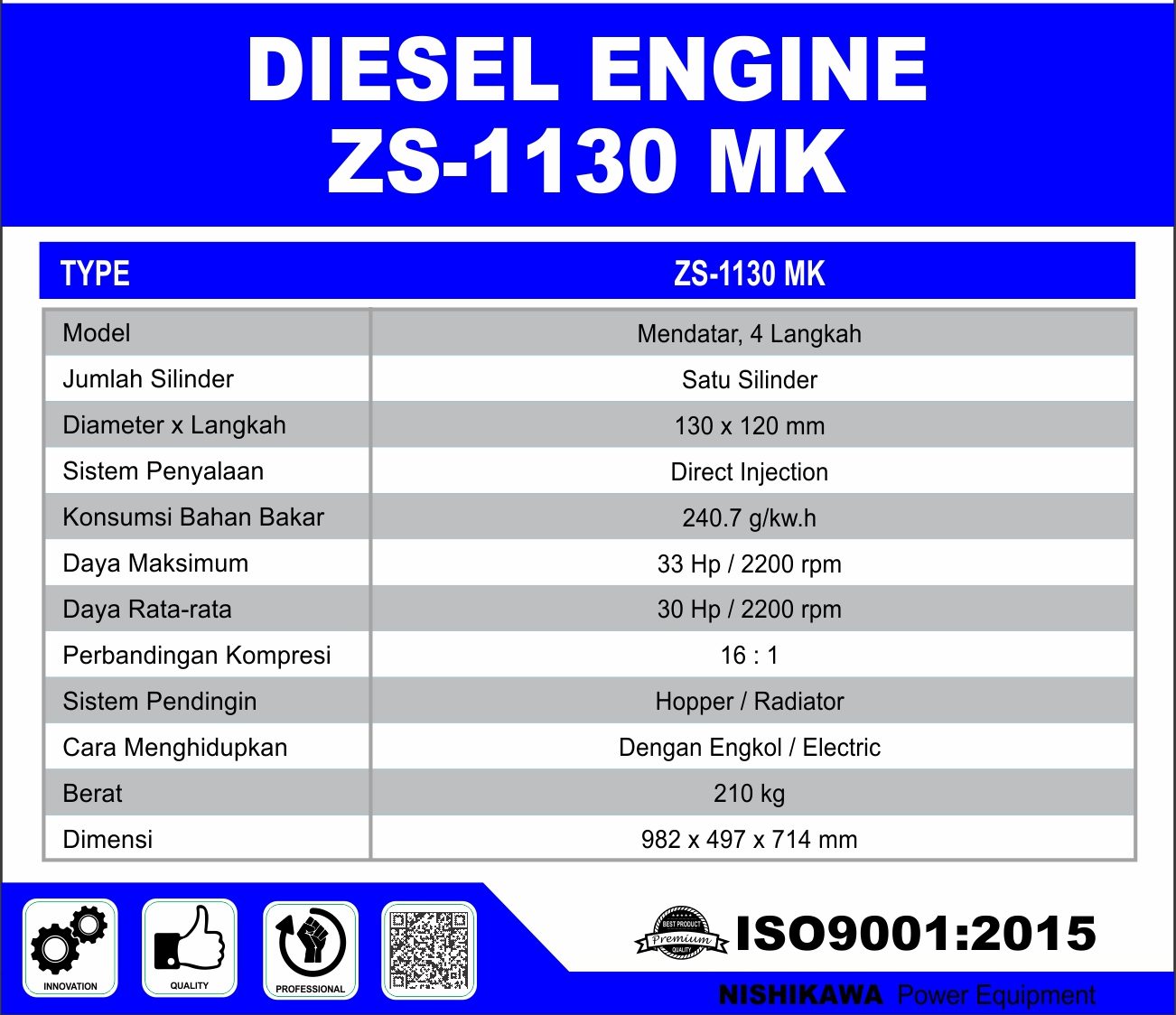

SPESIFIKASI :

Type ZS-1130 MK
Model Mendatar, 4 Langkah
Jumlah Silinder Satu Silinder
Diameter x Langkah 130 x 120 mm
Sistem Penyalaan Direct Injection
Konsumsi Bahan Bakar 240.7 g/kw.h
Tenaga Maksimum 33 Hp / 2200 rpm
Tenaga Kontiniu 30 Hp / 2200 rpm
Perbandingan Kompresi 16:1
Sistem Pendingin Hopper /Radiator
Cara Menghidupkan Dengan Engkol / Electric
Berat 210 kg
Dimensi 982 x 497 x 714 mm

Additional information

Weight 210 kg
Dimensions 98.2 × 49.7 × 71.4 cm

Reviews

There are no reviews yet.

Be the first to review “ZS-1130 MK | DIESEL GENERATOR | MESIN DIESEL | NISHIKAWA”

Your email address will not be published. Required fields are marked *

Quick Comparison

SettingsZS-1130 MK | DIESEL GENERATOR | MESIN DIESEL | NISHIKAWA removeNGX-160 | GASOLINE ENGINE | MESIN BENSIN | NISHIKAWA remove06 | GEAR BOX | NISHIKAWA removeNAC-1012 E | AIR COMPRESSORS | KOMPRESOR UDARA | NISHIKAWA removeNEP-20 | ELECTRO MOTOR WATER PUMP | NISHIKAWA removeNAC-7525 E | AIR COMPRESSORS | KOMPRESOR UDARA | NISHIKAWA remove
SKUZS-1130 MKNGX-16006NAC-1012 ENEP-20NAC-7525 E
Rating
PriceRp 19.200.000Rp 1.750.000Rp 8.300.000Rp 2.200.000Rp 4.100.000Rp 2.500.000
Stock

10 in stock

10 in stock

Out of stock

Out of stock

10 in stock

10 in stock

Availability10 in stock10 in stockOut of stockOut of stock10 in stock10 in stock
Add to cart

Add to cart

Add to cart

Read more

Read more

Add to cart

Add to cart

Description
ContentSPESIFIKASI :
Type ZS-1130 MK
Model Mendatar, 4 Langkah
Jumlah Silinder Satu Silinder
Diameter x Langkah 130 x 120 mm
Sistem Penyalaan Direct Injection
Konsumsi Bahan Bakar 240.7 g/kw.h
Tenaga Maksimum 33 Hp / 2200 rpm
Tenaga Kontiniu 30 Hp / 2200 rpm
Perbandingan Kompresi 16:1
Sistem Pendingin Hopper /Radiator
Cara Menghidupkan Dengan Engkol / Electric
Berat 210 kg
Dimensi 982 x 497 x 714 mm
SPESIFIKASI :
Type NGX-160
Model Mesin OHV, 4-Stroke, Silinder Tunggal Pendingin Udara
Daya Max 6 Hp
Bore x Stroke 68 x 54 mm
Isi Silinder 163
Kapasitas Tangki 3.6 L
Kapasitas Oli 0.6 L
Sistem Memulai Recoil
N.W / G.W 15/16 kg
Dimensi Unit 340 x 400 x 340 mm
SPESIFIKASI :
Type 06
Rasio 2:1/2.5:1/3:1
Kecepatan 2000 rpm
Kapasitas 0.0044 kw/r.min
SPESIFIKASI :
Type NAC-1012 E
Daya 980 w
Voltase 220 v
Frekuensi 50 Hz
Kecepatan 2800 r/min
Kelas Isolasi B
Tekanan Udara 65 L/min
Tekanan Kerja 8 Bar
Silinder Ø57.8 mm*2
Kap. Tangki 12 L
SPESIFIKASI :
Type NEP-20
Daya Max 2 Hp
Diameter Pompa 50 mm
Kapasitas 30 m³h
Daya Dorong 25 m
Daya Hisap 8 m
Tegangan 220 v
Frekuensi 50 Hz
Berat 27 kg
Dimensi Unit 500 x 290 x 375 mm
SPESIFIKASI :
Type NAC-7525 E
Daya 1 Hp / 750 w
Voltase 220 v
Frekuensi 50 Hz
Kecepatan 2800 r/min
Kelas Isolasi B
Tekanan Udara 102 L/min
Tekanan Kerja 8 Bar
Silinder 42 mm
Kap. Tangki 24 L
Berat 23 kg
Dimensi Unit 580 x 280 x 570 mm
Weight210152723
Dimensions98.2 × 49.7 × 71.4 cm34 × 40 × 34 cmN/AN/A50 × 29 × 37.5 cm58 × 28 × 57 cm
Additional information
Weight 210 kg
Dimensions 98.2 × 49.7 × 71.4 cm
Weight 15 kg
Dimensions 34 × 40 × 34 cm
Weight 27 kg
Dimensions 50 × 29 × 37.5 cm
Weight 23 kg
Dimensions 58 × 28 × 57 cm
