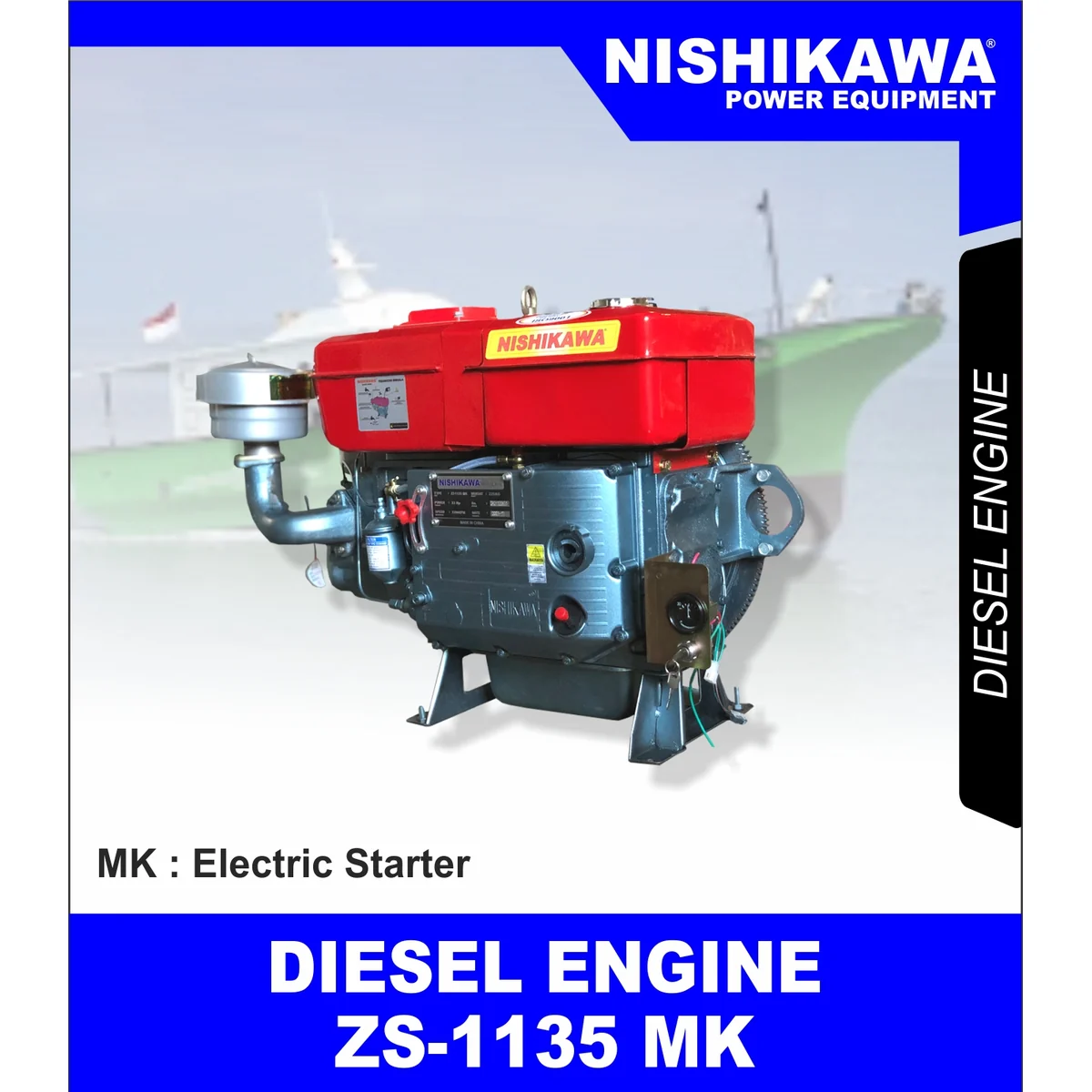

ZS-1135 MK | DIESEL GENERATOR | MESIN DIESEL | NISHIKAWA

Rp 19.750.000

10 in stock

SKU: ZS-1135 MK Categories: ,

Description

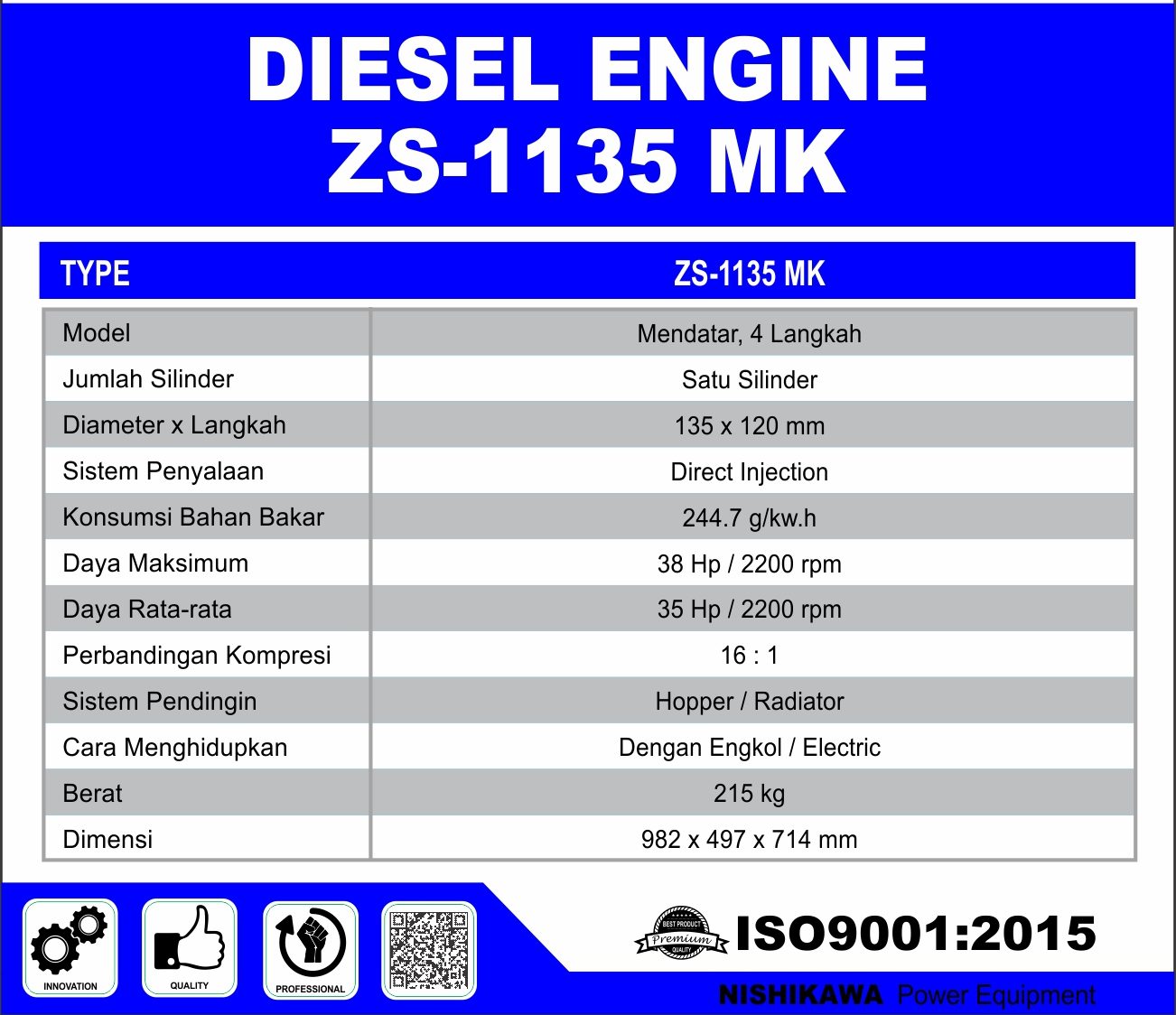

SPESIFIKASI :

Type ZS-1135 MK
Model Mendatar, 4 Langkah
Jumlah Silinder Satu Silinder
Diameter x Langkah 135 x 120 mm
Sistem Penyalaan Direct Injection
Konsumsi Bahan Bakar 244.7 g/kw.h
Tenaga Maksimum 38 Hp / 2200 rpm
Tenaga Kontiniu 35 Hp / 2200 rpm
Perbandingan Kompresi 16:1
Sistem Pendingin Hopper /Radiator
Cara Menghidupkan Dengan Engkol / Electric
Berat 215 kg
Dimensi 982 x 497 x 714 mm

Additional information

Weight 215 kg
Dimensions 98.2 × 49.7 × 71.4 cm
