| Content | SPESIFIKASI :
| Model |

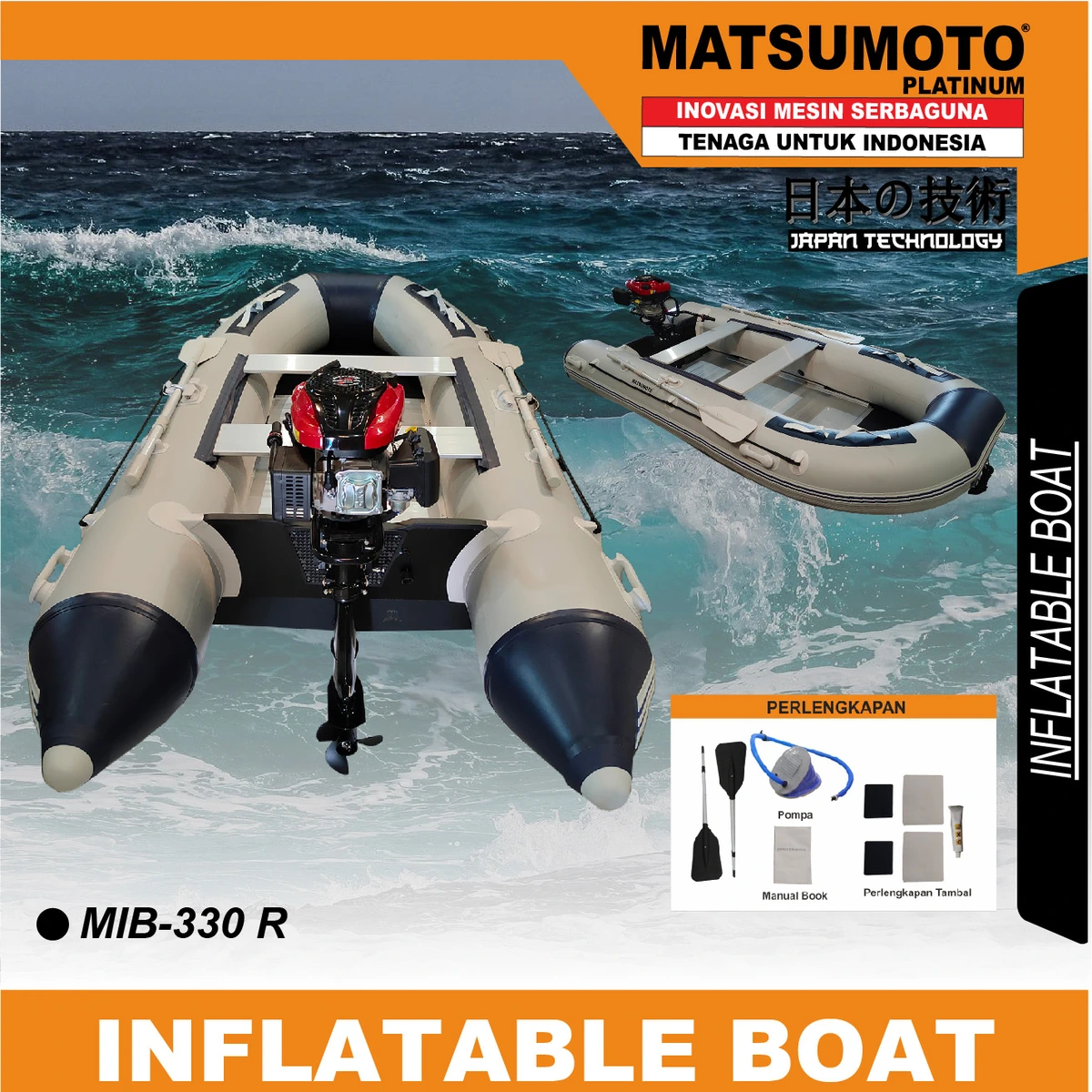

MIB-330 R |
| Kapasitas (Orang) |
6 + 1 |
| Beban Maksimal (kg) |
480 |
| Dimensi Eksternal (mm) |
3300 x 1510 |
| Tube Diameter (cm) |
42 |
| Tebal (mm) |
0.9 |
| Berat (kg) |
57 |
| Dimensai Packing (cm) |
110 x 57 x 40 |
| Aksesoris |
| 2 Pasang Dayung Alumunium |
| 2 Pcs Kursi Alumunium |
| 1 Pcs Pompa Kaki |
| 4 Pcs Strip Lantai Alumunium |
| 1 Pcs Perbaikan Kit |
| SPESIFIKASI :
| Model |
MSE-222 G |
| Type Sprayer |
MS-22 |
| Sprayer |
| RPM |
800 - 1000 |
| Suction (L/min) |
16.5 - 20.5 |
| Power (Hp) |
2 - 3 |
| Pressure (Mpa) |
1.5 - 3.5 |
| Sprayer |
| RPM |
1200 - 1400 |
| Suction (L/min) |
28 - 40 |
| Power (Hp) |
5 - 6 |
| Pressure (Mpa) |
1.1 - 1.5 |
| Berat (kg) |
35 |
| Dimensi (mm) |
840 x 390 x 420 |
| SPESIFIKASI :
| Model |
MDP-40 ES |
| Daya |
10 Hp |
| Daya Maksimum |
6.6 kw / 3600 rpm |
| Diameter x Langkah |
86 x 72 mm |
| Kecepatan Rata-rata |
3000 Rpm |
| Kapasitas Bahan Bakar |
5.5 L |
| Kapasitas Oli Mesin |
1.65 L |
| Sistem Penyalaan |
Electrical Start |
| Diameter Hisap / Keluar Arus |
100 / 4" mm |
| Tinggi Hisap |
6 m |
| Daya Dorong |
32 mm |
| Kapasitas |
80 m/h |
| Berat Bersih |
69 kg |
| Dimensi |
650 x 510 x 560 mm |
| SPESIFIKASI :
| Model |
MDX-186 FA / FAE |
| Model Mesin |
OHV, 4-Tak, Silinder Tunggal Dengan Pendingin Udara Diesel |
| Diameter x Langkah |
86 x 72 mm |
| Kapasitas Silinder |
418 cc |
| Daya Maksimum |
10 Hp |
| Kecepatan Rata-rata |
3600 rpm |
| Kapasitas Bahan Bakar |
5.5 L |
| Kapasitas Oli Mesin |
1.65 L |
| Sistem Penyalaan |
Recoil Starter / Electric Starter |
| Berat Bersih |
38 kg |
| Dimensi |
450 x 360 x 450 mm |
| SPESIFIKASI :
| Model |
MSE-230 G |
| Type Sprayer |
MS-30 |
| Sprayer |
| RPM |
80 - 1000 |
| Suction (L/min) |
40 - 45 |
| Power (Hp) |
2 - 3 |
| Pressure (Mpa) |
1.5 - 3.5 |
| Sprayer |
| RPM |
1200 - 1400 |
| Suction (L/min) |
40 - 50 |
| Power (Hp) |
10 |
| Pressure (Mpa) |
1.0 - 1.5 |
| Berat (kg) |
37 |
| Dimensi (mm) |
850 x 400 x 430 |
| SPESIFIKASI :
| Model |
MED-430 |
| Model Mesin |
2-Tak, Silinder Bensin Dengan Pendingin Udara |
| Daya Maksimum (kw / r/min) |
1.25 kw / 6500 rpm |
| Kapasitas Silinder (cc) |
42.7 |
| Type Karburator |
Diaphragm |
| Diameter Mata Bor (mm) |
100 / 150 / 200 / 250 / 300 |
| Model Pengemudi |
Gear Transmission |
| Tingkat Pengemudi |
30:1 |
| Berat (kg) |
12 kg |
| Dimensi (mm) |
320 x 410 x 310 mm |
|
| Additional information |
| Weight |
57 kg |
| Dimensions |
110 × 57 × 40 cm |
|
| Weight |
35 kg |
| Dimensions |
84 × 39 × 42 cm |
|
| Weight |
69 kg |
| Dimensions |
65 × 51 × 56 cm |
|
| Weight |
38 kg |
| Dimensions |
45 × 36 × 45 cm |
| Pilihan |
MDX-186 FA, MDX-186 FAE
|
|
| Weight |
37 kg |
| Dimensions |
85 × 40 × 43 cm |
|
| Weight |
12 kg |
| Dimensions |
32 × 41 × 31 cm |
|
Reviews
There are no reviews yet.
